Triiron Tetraoxide CAS #1317-61-9

  • Natural Mineral Origin: Derived from naturally occurring magnetite, providing a stable and reliable source of triiron tetroxide.

  • Multiple Production Methods: Can be efficiently prepared through various processes, including chemical precipitation, controlled oxidation, and steam oxidation, offering flexible manufacturing options.

  • Stable Chemical Composition: Features a well-defined Fe₃O₄ structure with excellent stability, making it suitable for diverse industrial applications.

  • High-Quality Magnetic Properties: Possesses inherent magnetic characteristics due to its iron oxide composition, supporting applications that require magnetic performance.


Product Details

Products Description of Direct Triiron Tetraoxide CAS #1317-61-9

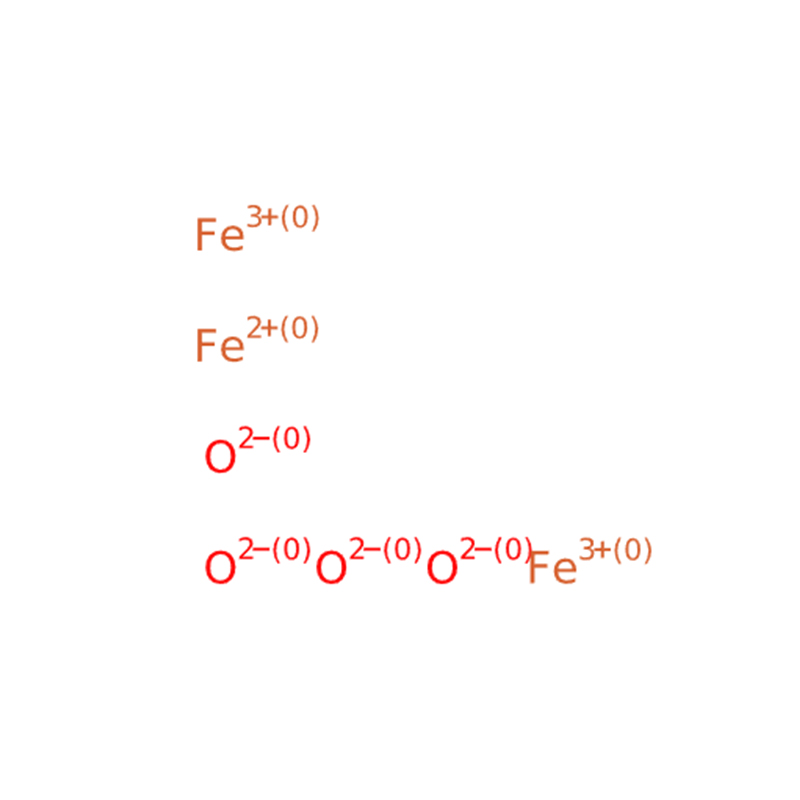

Triiron tetroxide (Fe₃O₄) is naturally derived from magnetite, a naturally occurring iron oxide mineral. In laboratory preparation, it can be synthesized by adding sodium hydroxide solution to an aqueous solution containing a 1:2 molar ratio mixture of ferrous and ferric salts (such as 1 mol FeCl₂ and 2 mol FeCl₃). The resulting black hydroxide precipitate undergoes dehydration upon heating to form triiron tetroxide:

Fe²⁺(aq) + 2Fe³⁺(aq) + 8OH⁻(aq) → Fe₃(OH)₈(s)

Fe₃(OH)₈(s) → Fe₃O₄(s) + 4H₂O(g)

Additionally, triiron tetroxide can be produced through the partial oxidation of iron or iron(II) sulfate under controlled heating conditions with limited air supply. Another production method involves the reaction of iron metal with steam at high temperatures:

3Fe + 4H₂O → Fe₃O₄ + 4H₂

These versatile preparation methods enable the production of triiron tetroxide with consistent quality and reliable performance for various applications.

Triiron Tetraoxide CAS #1317-61-9

Triiron tetraoxide Chemical Properties

Melting point 1538 °C(lit.)
density 4.8-5.1 g/mL at 25 °C(lit.)
refractive index 3
Fp 7 °C
storage temp. -20°C
solubility Aqueous Acid (Slightly)

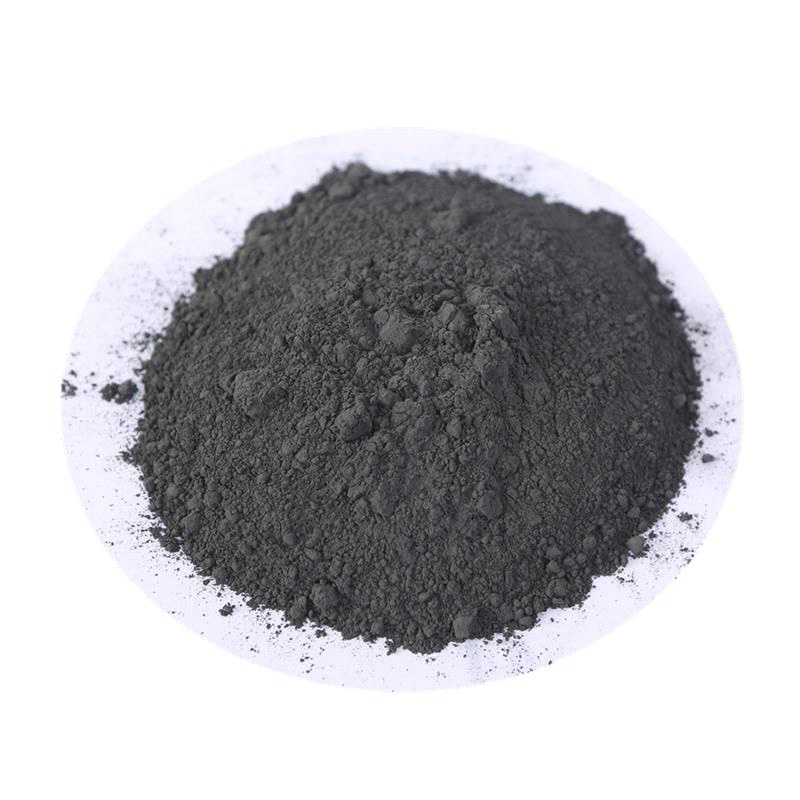

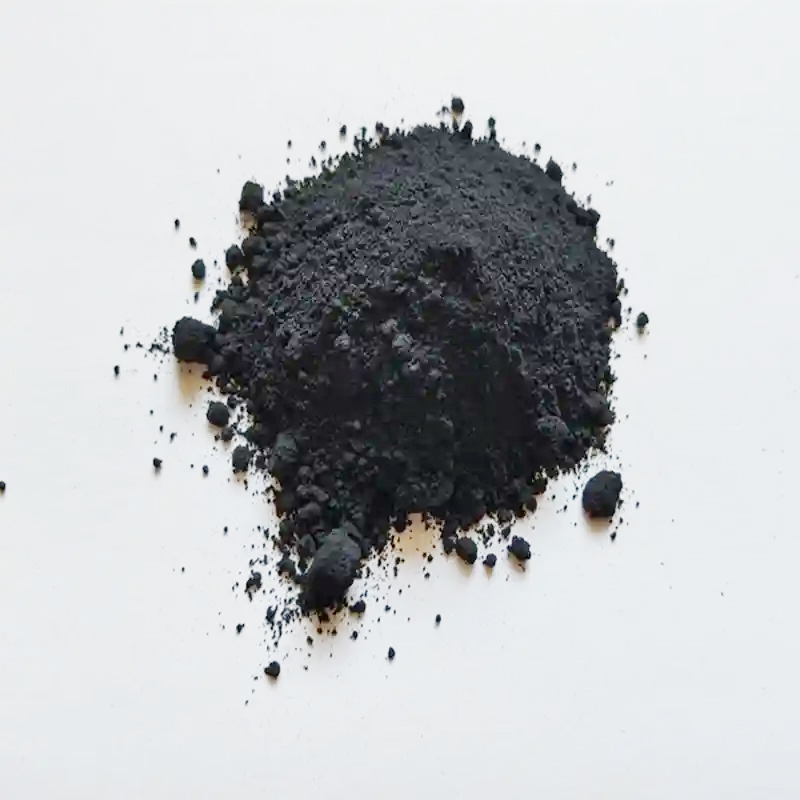

form powder
color black
Specific Gravity5.2
Odorat 100.00?%. odorless
Water Solubility Insoluble in water and organic solvents. Soluble in concentrated mineral acids.
Crystal StructureInverse spinel type
crystal systemCube
Merck 144040
Space groupFd3m
Lattice constanta/nmb/nmc/nmα/oβ/oγ/oV/nm30.839410.839410.839419090900.5915
Stability:Stable. Incompatible with strong acids, chloroformates, peroxides.
CAS DataBase Reference1317-61-9(CAS DataBase Reference)
NIST Chemistry ReferenceIron(ii,iii) oxide(1317-61-9)
EPA Substance Registry SystemIron oxide (Fe3O4) (1317-61-9)

Triiron Tetraoxide CAS #1317-61-9

Product Application of Direct Triiron Tetraoxide CAS #1317-61-9

Triiron tetroxide is primarily used as a black pigment and catalyst in applications such as the Haber process and water-gas shift reactions. It is also utilized as a contrast agent in MRI imaging.

Due to its magnetic properties and excellent coloring performance, triiron tetroxide is widely applied in magnetic materials, polishing compounds, cosmetics, pharmaceuticals, polymers, rubber products, fillers, building and construction materials, household appliances, and magnetic ink formulations.
